high output power FTM-3100R mobile transceiver with 65 Watts

FOB Reference Price:Get Latest Price
  • 1 - 29 Sets
    $300.00
  • >=30 Sets
    $50.00
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Model Number:
FTM-3100R
output power:
65 Watts
Frequency Range:
Transmit: 144 - 148 MHz Receive: 136 - 174 MHz
Supply Ability
Supply Ability:
999999999 Set/Sets per Day
Packaging & Delivery
Port
shenzhen
Lead Time :
3-5 work days



Analog FM Single Band
2-Meter TRANSCEIVER

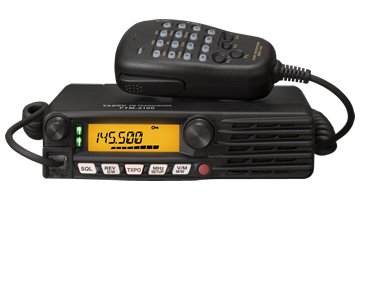

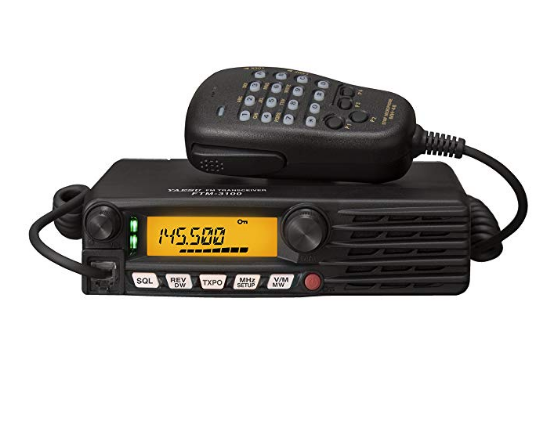

The new FTM-3100R is a ruggedly built yet compact VHF-FM mobile transceiver, providing high output power of up to 65 Watts to ensure stable long-distance communications. One of the distinguishing features of this exciting new mobile transceiver is the Front Panel Speaker delivering 3 Watts of loud and crystal clear audio; designed for stress-free and enjoyable communications - even in noisy environments.

This new mobile is equipped with a heavy-duty heat sink that includes an extraordinary FACC; Funnel Air-Convection Conductor (Wind Tunnel). The FACC gathers cool air through a wide open front air-intake and concentrates the air flow to the critical final amplifier area drawn by a rear cooling fan.









Powerful and Rugged 65 Watt Transmitter



Enjoy 65 Watts of 2-Meter RF Output to ensure long distance communication even in the toughest of situations. Type: F3E Variable Reactance Modulation.3 watts of crystal clear front panel audioIn any environment enjoy loud and crystal clear audio with 3 Watts of audio from the FTM-3200R's front mounted speaker. 8 Watt output using Optional External Speaker (MLS-200-M10)FACC - Funnel Air-Convection Conductor (Wind Tunnel).Cool air is drawn through a wide open front air intake and is then concentrated over critical areas of the Power Amplifier (PA) section of the FTM-3100R.





Frequency RangeTransmit: 144 - 148 MHz



Receive: 136 - 174 MHz



Dimensions



Size: 6.1" x 1.7" x 6.1" (154 x 43 x 155 mm)
Weight: 2.86lb (1.3kg)





Other Useful Features





- 220 Alpha-Numeric Memory Channels
- CTCSS and DCS Encode/Decode
- Extended Receive 136-174 MHz.
- High Stability TCXO ±2.5 ppm
- Severe Weather Alert



Specifications





Circuit Type: Double Conversion Superheterodyne
IF: 1st 47.25 MHz, 2nd 450 kHz
Sensitivity (12dB SINAD): 0.20uV (HAM Wide), 0.22uV (HAM Narrow)
Selectivity (-6/-60dB): 12 kHz/28 kHZ
Maximum AF Output: 3W @ 13.8V, 10% THD
Output Power: 65/30/5 W
Maximum Deviation: +5 kHz (Wide), +2.5 kHz (Narrow)
Spurious Radiation: Better than -60 dB
Microphone Impedance: 2k Ohms
Antenna Impedance: 50 Ohms
Operating Temperature Range: -4 Degree's (F) to +140 Degree's (F)
